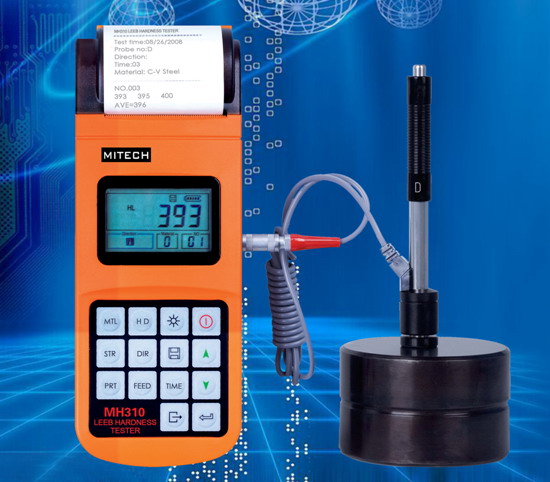

MH310 Portable Hardness Tester
Nhà cung cấp: China Brands
Danh mục: Hardness Tester
Gọi (84-8) 39 847 477 để biết thêm thông tin
description
Advantages
- Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
- Large screen LCD, showing all functions and parameters. With EL background light.
- Seven impact devices are available for special application. Automatically identify the type of impact devices, and with the user calibration function.
- Test at any angle, even upside down.
- Large memory could store 100 groups (Relative to average times 32～1 ) information including single measured value, mean value, impact direction, impact times, material and hardness scale etc.
- Battery information showing the rest capacity of the battery and the charge status.
- Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
- NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
- Auto power off to save energy.
- Excellent after-sale service system for high quality products--two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.
- Main Application
- Die cavity of molds
- Bearings and other parts
- Failure analysis of pressure vessel, steam generator and other equipment
- Heavy work piece
- The installed machinery and permanently assembled parts
- Testing surface of a small hollow space
- Material identification in the warehouse of metallic materials
- Rapid testing in large range and multi-measuring areas for large-scale work piece
Technical Specifications
l Error and repeatability of displayed value:
|
No.
|
Type of impact device
|
Hardness value of Leeb standard hardness block
|
Error of displayed value
|
Repeatability
|
|
1
|
D
|
760±30HLD
530±40HLD
|
±6 HLD
±10 HLD
|
6 HLD
10 HLD
|
|
2
|
DC
|
760±30HLDC
530±40HLDC
|
±6 HLDC
±10 HLDC
|
6 HLD
10 HLD
|
|
3
|
DL
|
878±30HLDL
736±40HLDL
|
±12 HLDL
|
12 HLDL
|
|
4
|
D+15
|
766±30HLD+15
544±40HLD+15
|
±12 HLD+15
|
12 HLD+15
|
|
5
|
G
|
590±40HLG
500±40HLG
|
±12 HLG
|
12 HLG
|
|
6
|
E
|
725±30HLE
508±40HLE
|
±12 HLE
|
12 HLE
|
|
7
|
C
|
822±30HLC
590±40HLC
|
±12 HLC
|
12 HLC
|
l Measuring range：HLD（170～960）HLD
l Measuring direction：0°~360°
l Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS
l Display：segment LCD
l Data memory：100 groups max.（relative to impact times 32～1）
l Printing paper: width is （57.5±0.5）mm, diameter is 30mm.
l Battery pack: 6V NI-MH
l Battery charger: 9V/500mA
l Continuous working period：about 150 hours（With backlight off, no printing）
l Communication interface：USB1.1
l Outline dimensions：212mm×80mm×32mm
Configuration
Table 1-2
|
|
No.
|
Item
|
Quantity
|
Remarks
|
|
Standard Configuration
|
1
|
Main unit
|
1
|
|
|
2
|
D type impact device
|
1
|
With cable
|
|
|
3
|
Standard test block
|
1
|
|
|
|
4
|
Cleaning brush (I)
|
1
|
|
|
|
5
|
Small support ring
|
1
|
|
|
|
6
|
Battery Charger
|
1
|
9V 500mA
|
|
|
7
|
Paper for printing
|
1
|
|
|
|
8
|
Manual
|
1
|
|
|
|
9
|
Instrument package case
|
1
|
|
|
|
Optional Configuration
|
11
|
Cleaning brush (II)
|
1
|
For use with G type impact device
|
|
12
|
Other type of impact devices and support rings
|
|
Refer to Table 3 and Table 4 in the appendix.
|
|
|
13
|
DataPro software
|
1
|
|
|
|
14
|
Communication cable
|
1
|
|
|
|
15
|
|
|
|
|
|
